Marinex 3D nanoSwitch MicroSwitch & Marinex Digital

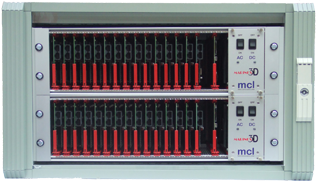

Marinex 3D
The Marinex 3D digital telephone exchange is designed for use on-board ships for both external and internal communications. With a maximum capacity of 240 extensions (2x3U units) the exchange provides all the
normal telephone functions on a sophisticated "top of the range" system.
The equipment is modular in design using a 3U (120 port) basic module building doubling to a 6U (240 port) system. The exchange is self-contained with an integral MDF or can be rack-mounted with 50 way connection cables.
Product features
• Internal/ external communications
• Dual Input Power Supply
• Uses standard telephones
• Bulkhead mounting
• Integral Distribution Frame
• Compact modular construction
• Caller Line Indication
• PC programmable
• Simple to install
• Firmware updateable in the field
• Channel LED for diagnostics


 Technical features

Number of Extensions:
8 to 240 extensions

6 to 36 Shore/ SATCOM/GSM

Number of Public Address Lines:
1 to 6 Public Address output lines

Number of speech paths:
Non-Blocking

Height 3U/6U case: 212/345 mm
Depth: 160mm
Width: 600mm
Weight: 3U/6U 35/50 Kg (Cased)
Power Supply: 90-260VAC and 24VDC
